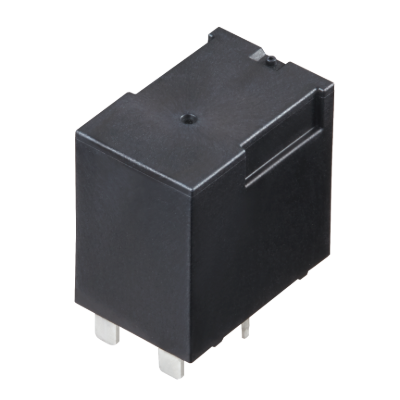

TF Relays | Automotive Relays

Download

  • Lineup

  • Basic Information

High-capacity automotive AC relay with carrying current ratings of 40 A ( 1 Form A ) and 32 A ( 1 Form C )

    • <Protective construction> Flux tight

    Please refer to "the latest product specifications" when designing your product.
    Please refer to "Cautions For Use" in the catalog, and "Related Information" on our website.

      • Features

        1. 1 Form A and 1 Form C contact type available
        2. Automotive-grade AC relay
        3. Maximum carrying current capability of 40 A
        4. Contact gap: 2.3 mm
        5. Insulation distance ( Clearance/Creepage )
          min. 6.0 mm ( initial )

      • Typical Applications

        1. OBC and V2L for PHEV and BEV
        2. For other automotive AC load applications
          Expected life ( Electrical ): N.O. side: 250 VAC, 32 A, 10,000 ope.
                                                      N.C. side: 250 VAC, 5 A, 10,000 ope.
      • Lineup
      • Discontinued Products
      TF Relays Product number list
      No matching products found.
      • Please review your search criteria and try again.
      • If you have any questions, feel free to contact us.

        • Packing

          Carton (1-tube): 30 pcs. Case: 480 pcs.
